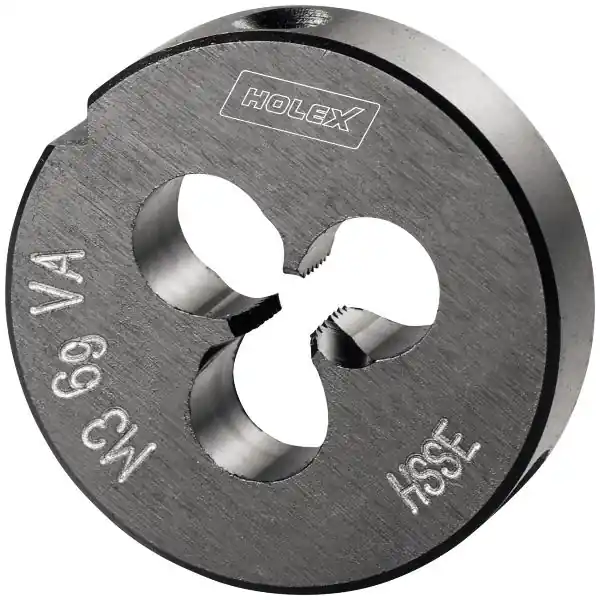

Description
Caractéristiques techniques
| Through-coolant | no | |
| Cooling lubricant | yes | |
| Thread type | M | |
| Thread nominal diameter metric | 3 mm | |
| Thread | M3 | |
| Thread pitch | 0.5 mm | |
| Thread tolerance class | DIN 13 6g | |
| Body diameter | 20 mm | |
| Number of teeth | 3 | |
| Twist direction | right-hand | |
| Taper lead form | B | |
| Flank angle | 60 degrees | |
| Tool material | HSS-E | |
| Overall length L | 5 mm | |
| Cutting direction | right-hand cutting | |
| Tool version | solid steel | |
| Standard | EN 22568 | |
| Machining method | thread processing external | |
| Type of product | Dies |
Identification et classification
| Référence article | 140460 M3 | |
| EAN / GTIN | 4062406233310 | |
| Réf. fabricant | 140460 M3 | |
| Fabricant/personne responsable | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Deutschland, |
Tableau dapplication
